Oscilloscope Probe 1:100 - HP-9258
The Oscilloscope Probe 1:100 - HP-9258 is a low-input capacitance high voltage 1:100 oscilloscope probe with a bandwidth of 250 MHz designed and calibrated for use on scopes having an input impedance of 1 MOhm shunted by 20 pF. However, it may be compensated for use with oscilloscopes having an input capacitance of 10 - 35 pF.
The modular construction facilitates simple field replacement of the major parts.
Order code: HP-9258
EAN: 7423647237234
Price: 62.90
Category: Probes
The table below shows detailed specifications of the Oscilloscope Probe 1:100 - HP-9258.
Oscilloscope Probe 1:100 - HP-9258 - Specification | |
|---|---|
| Attenuation ratio | 100:1 |
| Max. input voltage | 1500 Vrms CAT II (2000 V DC + peak AC), derating with frequency, see tab Voltage derating curve |
| Input resistance | 99 MOhm plus 1 MOhm oscilloscope input impedance |
| Input capacitance | Approx. 5.5 pF |
| Bandwidth | DC to 250 MHz |
| Rise time | 1.4 ns |
| Compensating range | 10 to 35 pF |
| Cable length | 1.3 m (51 inch) |
| Operating temperature | -10 °C to 55 °C |
| Relative humidity | ≤ 85 % (at 35 °C) |
| Safety | meets EN61010-031 CAT II |
| Accessories | Channel identifier clip Sprung hook Ground lead Insulating tip IC tip Adjusting tool Measuring tip BNC adapter (male) |

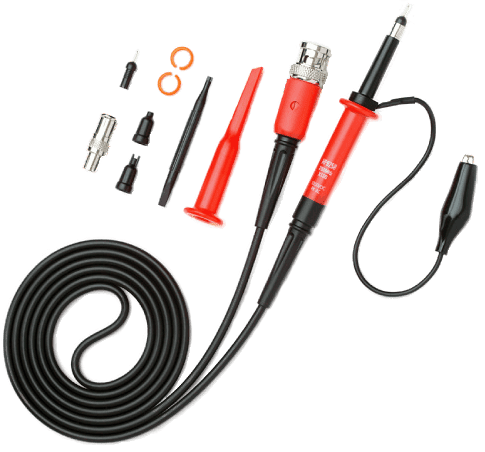

The Oscilloscope Probe 1:100 - HP-9258 is delivered with:
| Amount | Item |
|---|---|
| 1 | Oscilloscope Probe 1:100 - HP-9258 |
| 1 | Sprung hook |
| 1 | Ground lead |
| 1 | Insulating tip |
| 1 | IC tip |
| 1 | Measuring tip |
| 1 | BNC adapter (male) |
| 1 | Sprung earth tip |
| Various | Color coding rings |
